Suspension Repair Guide for Maruti Suzuki Ertiga

The suspension system in the Maruti Suzuki Ertiga plays a crucial role in providing a smooth and comfortable ride by absorbing road shocks and ensuring vehicle stability. Over time, components like shocks, struts, and bushings can wear out, leading to issues such as uneven tire wear, poor handling, or a bumpy ride. If you’re experiencing these problems, it may be time to inspect and repair your suspension system.

In this guide, we’ll walk you through the process of diagnosing suspension issues in the Maruti Suzuki Ertiga and provide step-by-step instructions on how to repair or replace common suspension components.

---

Common Suspension Issues in Maruti Suzuki Ertiga

Before diving into repairs, it’s essential to understand the common suspension problems that Ertiga owners may encounter:

1. Bouncy or Unstable Ride

If your Ertiga feels excessively bouncy or unstable when driving over bumps, it’s a sign that the shock absorbers or struts may be worn out. These components help dampen the impact of road irregularities and provide a stable ride.

2. Uneven Tire Wear

Suspension misalignment or worn-out parts can cause uneven tire wear. If you notice that your tires are wearing unevenly, it’s crucial to inspect the suspension for issues with alignment, ball joints, or control arms.

3. Clunking or Knocking Sounds

A clunking or knocking noise when driving over bumps may indicate worn-out bushings, ball joints, or stabilizer links. These parts connect the suspension components and ensure smooth movement.

4. Vehicle Leans or Sags

If one side of your vehicle is lower than the other or sags excessively, the springs or shocks may be damaged. This affects the vehicle’s balance and can compromise handling.

5. Steering Problems

Difficulty steering or a pulling sensation to one side often points to suspension alignment issues or problems with components like the tie rods or ball joints.

---

Step-by-Step Suspension Inspection

Tools You’ll Need:

• Jack and jack stands
• Socket wrench set
• Torque wrench
• Pry bar
• Suspension spring compressor (if replacing springs)
• Penetrating oil (for rusted bolts)

Step 1: Lift the Vehicle

• Use a jack to lift the front or rear of the vehicle and place it securely on jack stands.
• Ensure the vehicle is stable and supported correctly before working underneath it.

Step 2: Visually Inspect Suspension Components

• Inspect the shocks, struts, and springs for signs of oil leakage, corrosion, or damage. Leaking shocks often have visible fluid around the body.
• Check the control arms, bushings, and ball joints for wear or tears. Worn bushings will appear cracked or loose, causing clunking noises.
• Look at the stabilizer bar links and tie rods to ensure they are not bent, loose, or damaged.

Step 3: Check for Play or Movement

• Use a pry bar to gently lift the control arm and check for excessive movement in the ball joints or bushings. Excessive movement or play indicates wear and may require replacement.
• Turn the wheels by hand to check for loose or worn tie rods and bearings.

Step 4: Test the Shock Absorbers

• Perform a bounce test: Press down firmly on each corner of the vehicle and observe how it responds. If the car continues to bounce more than once or twice, the shocks or struts likely need to be replaced.

---

Replacing Suspension Components on a Maruti Suzuki Ertiga

If you’ve identified that one or more suspension components are worn or damaged, here’s how to replace the most common parts: shock absorbers, struts, and control arm bushings.

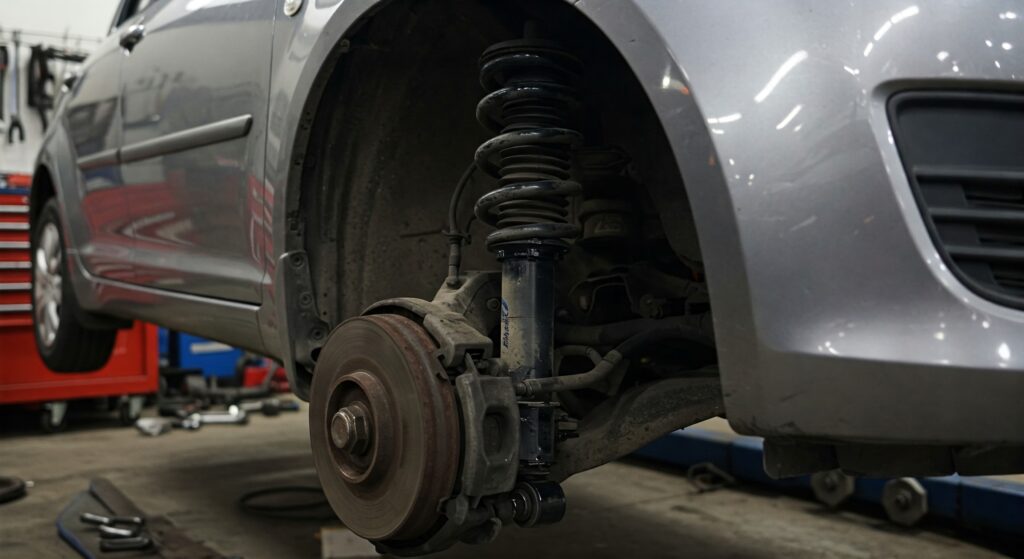

1. Replacing the Shock Absorbers and Struts

Shocks and struts are crucial for controlling the movement of the suspension and ensuring vehicle stability.

Tools Needed:

• Jack and stands
• Socket and ratchet set
• Spring compressor
• Penetrating oil (for stuck bolts)

Steps:

1. Remove the Wheel: Use a jack to lift the vehicle and remove the wheel to access the suspension components.
2. Loosen the Strut Mount Bolts: Using a wrench or socket set, loosen the bolts that hold the strut to the frame of the vehicle.
3. Detach the Strut from the Steering Knuckle: Use a socket wrench to remove the bolts connecting the strut to the steering knuckle. Support the steering knuckle to prevent it from falling.
4. Compress the Spring: If you’re replacing the strut, use a spring compressor to safely remove the spring from the strut assembly.
5. Install the New Strut or Shock: Align the new strut or shock and tighten the bolts to the manufacturer’s specifications. If using the same spring, carefully release the compressor and reassemble the components.
6. Reattach and Test: Reattach the wheel, lower the vehicle, and perform a test drive to ensure everything is functioning correctly.

---

2. Replacing Control Arm Bushings

Worn control arm bushings can cause noise and vibration. Replacing them restores smooth movement in the suspension.

Tools Needed:

• Wrench and socket set
• Pry bar
• Bushing press kit or hammer

Steps:

1. Lift the Vehicle and Remove the Control Arm: Using a wrench, loosen and remove the bolts securing the control arm to the suspension and frame.
2. Remove the Old Bushings: Press out the old bushings using a bushing press or hammer and socket. If the bushing is stuck, use penetrating oil to loosen it.
3. Install the New Bushings: Press the new bushings into the control arm using a bushing press kit.
4. Reinstall the Control Arm: Reattach the control arm to the vehicle and tighten all bolts according to torque specifications.

---

Preventive Maintenance Tips for Suspension

1. Regular Inspection: Periodically check the suspension for signs of wear, especially after driving on rough terrain or over speed bumps.
2. Tire Alignment: Get your tires aligned every 10,000-15,000 kilometers to prevent uneven tire wear and suspension strain.
3. Replace Worn Parts Promptly: If you notice any signs of suspension failure, replace the components quickly to avoid further damage to your vehicle.

---

Conclusion

The suspension system in your Maruti Suzuki Ertiga plays a critical role in ensuring a smooth and comfortable ride. Regular maintenance and prompt repairs of worn-out components such as shocks, struts, bushings, and control arms can prevent more significant problems down the road. By following this guide, you can diagnose common suspension issues and handle basic repairs yourself, or consult a professional mechanic for more complex work. Keeping your suspension system in good condition ensures that your Ertiga handles well and provides a safe, enjoyable driving experience.

---
